Turin Sport Citadel

Regional dimension: Based on the larger scale, with the urbanisation of Turin, the Mappano town is merged into a whole domain. As a result of the development of Juventus stadium, the sports culture and environment further evolve into the space between Mappano and Turin, specifically at the intersection of Via Galileo and highway linking De Caselle airport. As definition of the new sport domain, it will organised two kind of principal , the organic layout continuing with the urban morphology of Mappano and the grid layout continuing with the urban morphology of Turin.

Client

Turin Municipality

Type

Architecture, Urban

Year

2019

Status

Concept

Size

540,000 m²

Location

Turin, Italy

Team

Kai Wang, Guangrui Chen, Shuang Li, Wenjing Lu

Archipelago:

The Sports Archipelago can be defined with two principal of dimensions: Regional vs local.

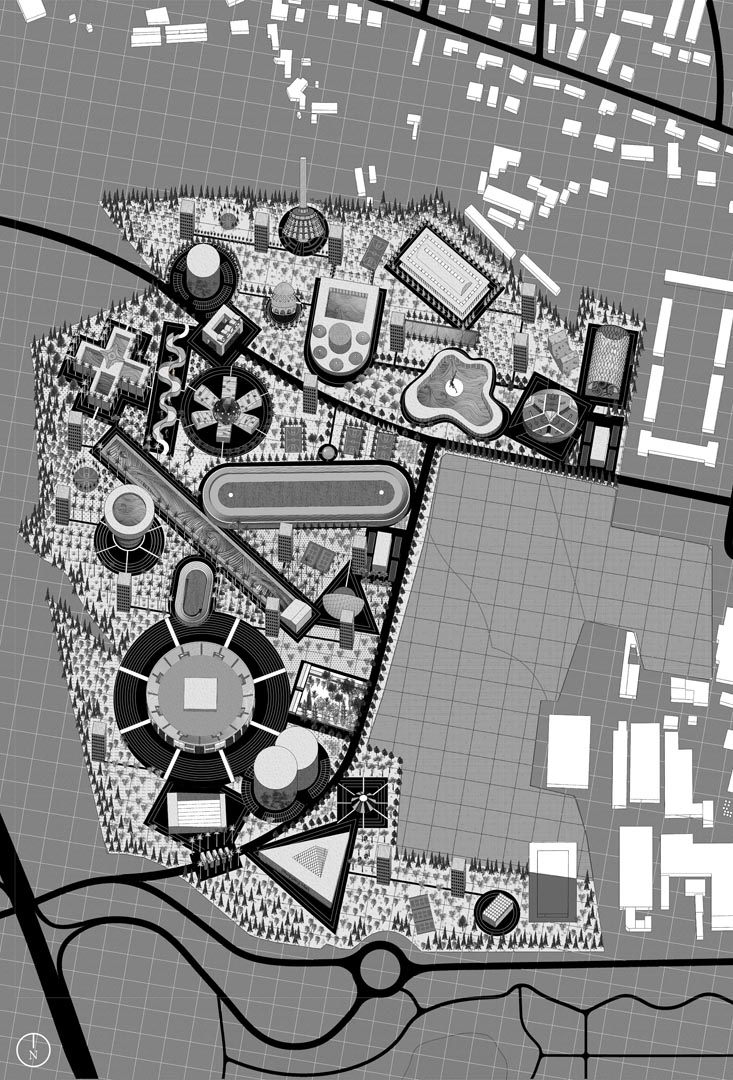

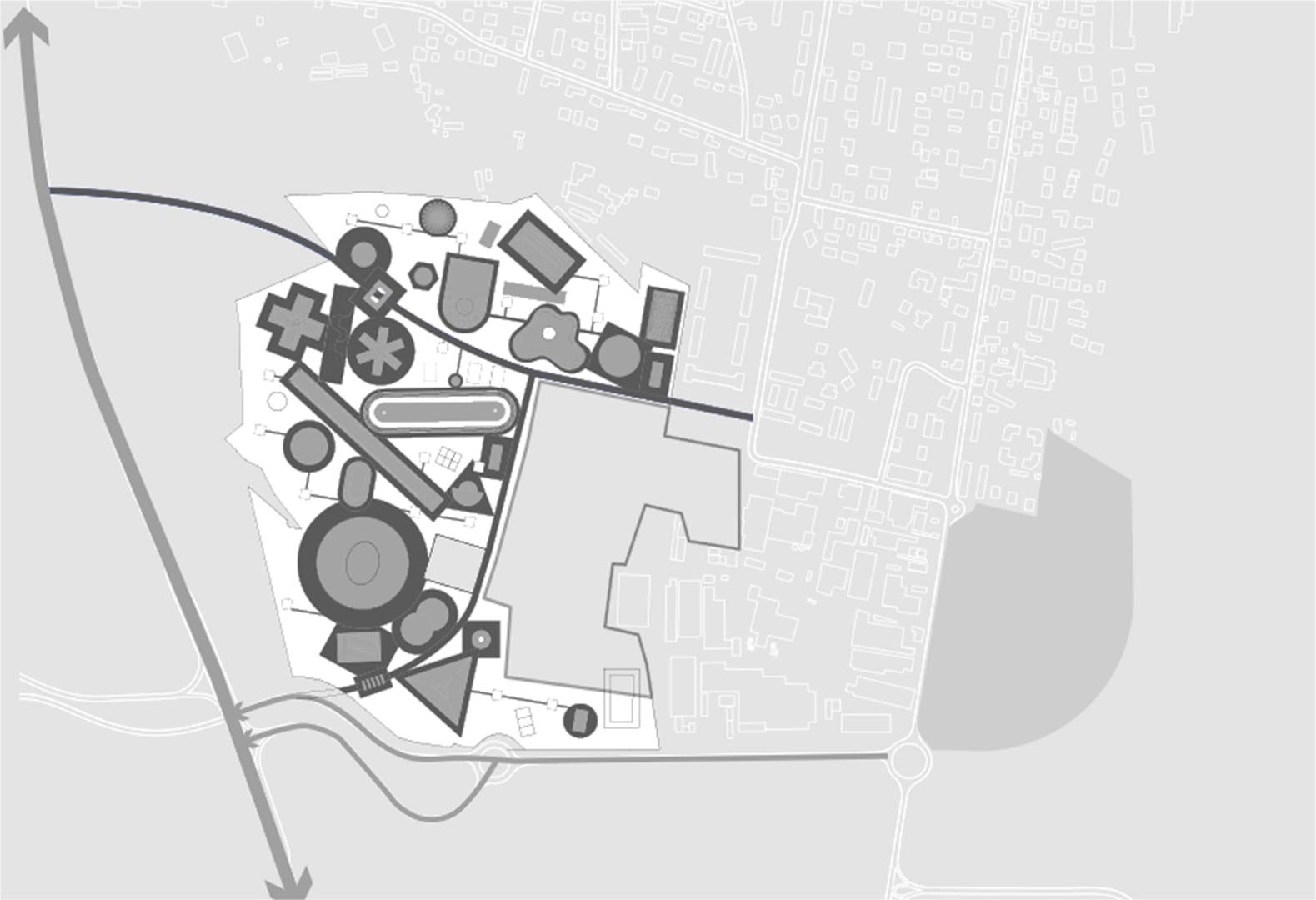

Regional dimension: Based on the larger scale, with the urbanisation of Turin, the Mappano town is merged into a whole domain. As a result of the development of Juventus stadium, the sports culture and environment further evolve into the space between Mappano and Turin, specifically at the intersection of Via Galileo and highway linking De Caselle airport. As definition of the new sport domain, it will organised two kind of principal , the organic layout continuing with the urban morphology of Mappano and the grid layout continuing with the urban morphology of Turin.

Read More

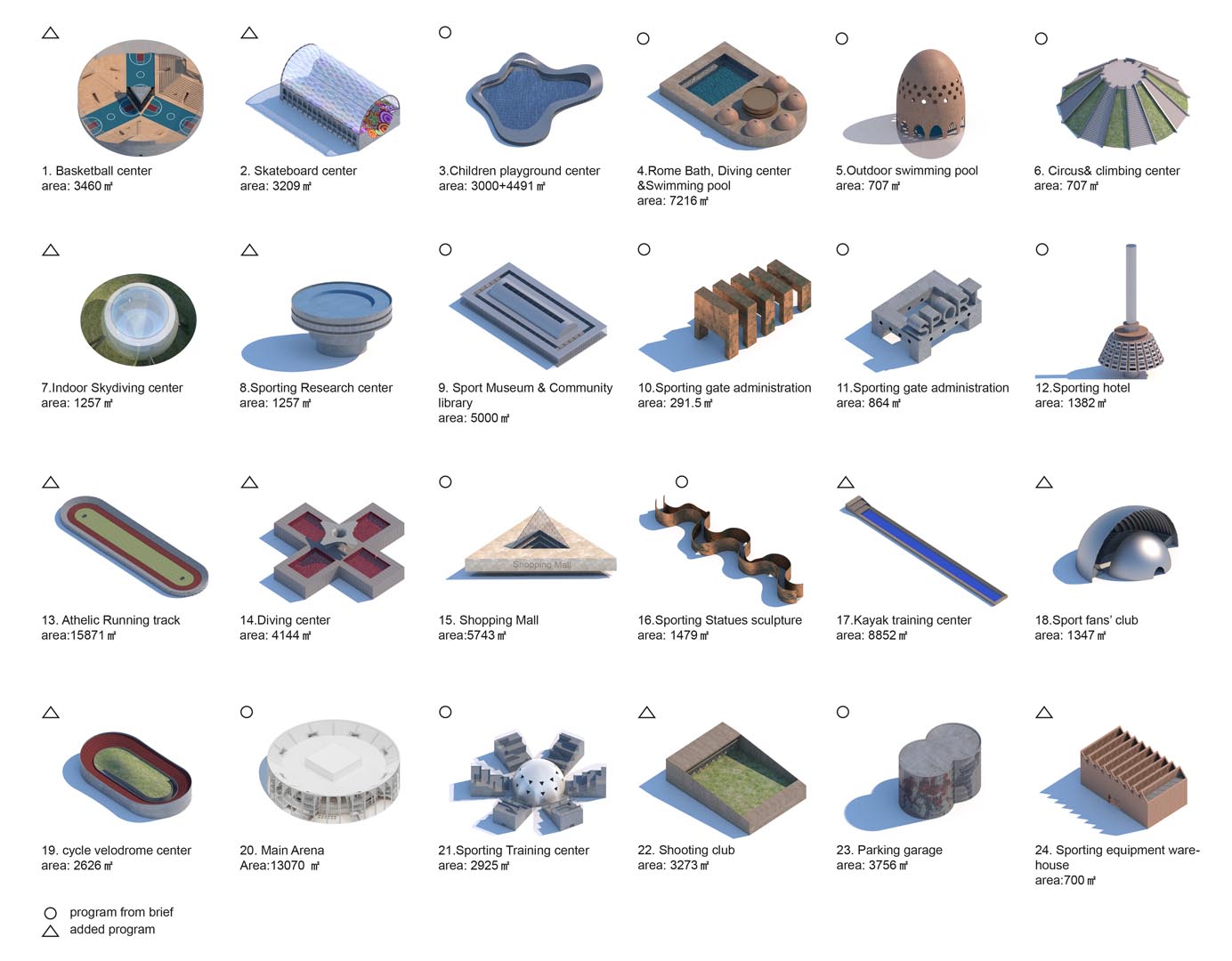

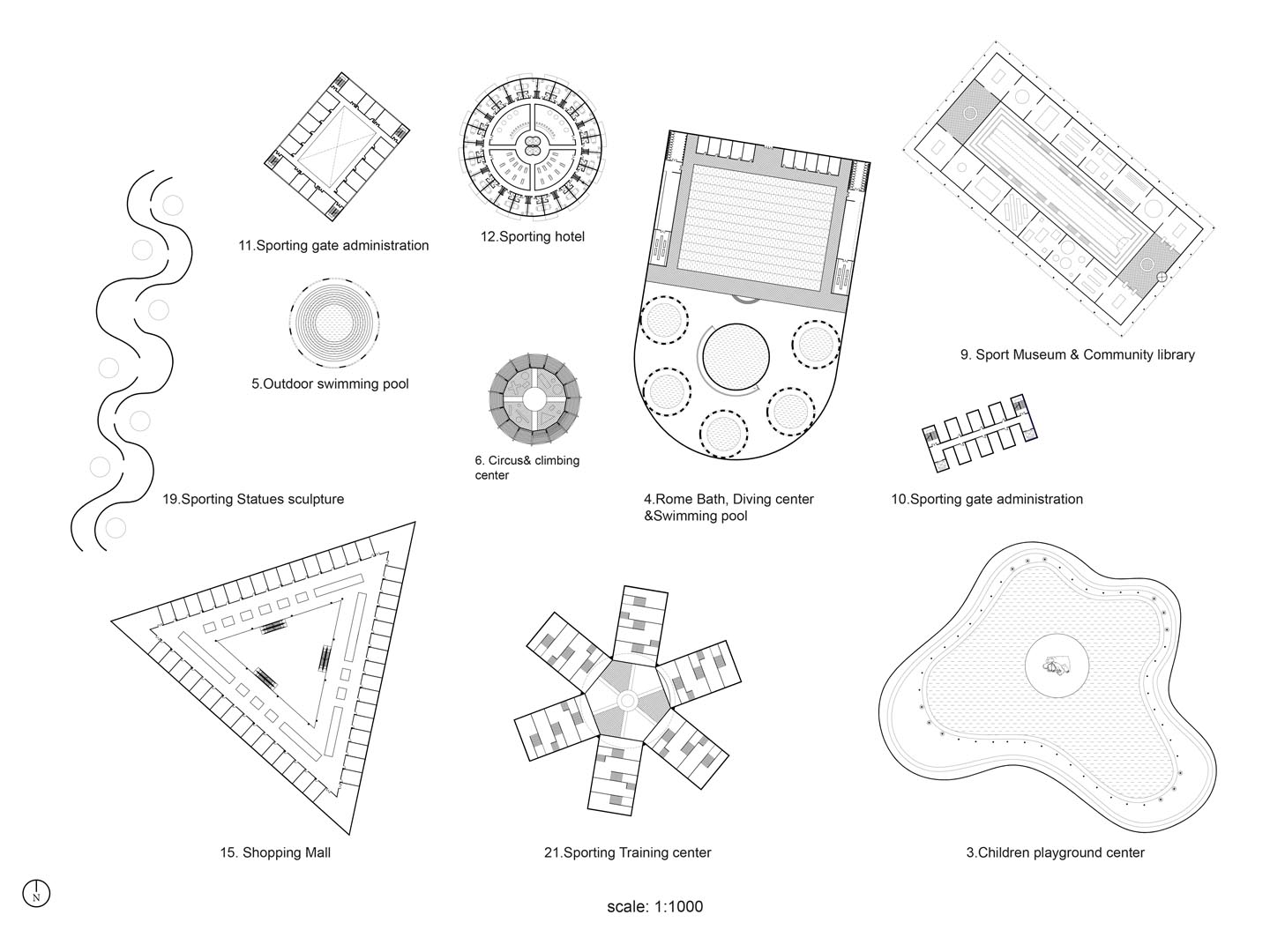

Local dimension: Based on the smaller scale, the urban context of the site is fully affected by sporting environment and the participation of the local youth. The diversity of program is identified by the local requirements and interest, and also include the necessity of maintenance of the whole sport citadel. The vivid activities and scenario contain the sport competition and entertainment. It will expand an experimental field to relating the sporting industry wildly based on the benchmark of Turin, where has two important football clubs and accommodates the winter Olympic game. The sport activities has arranged by the absolute archipelago of each identity of sport pavilions. The composition is fully related with the behavior of participates and the scenario of participation. It appears much more independent but it is also linked by the surface generating relationship with the form. The segregation of the elements aim to enlarge the identity of each sport scenario, and distinguish from each
